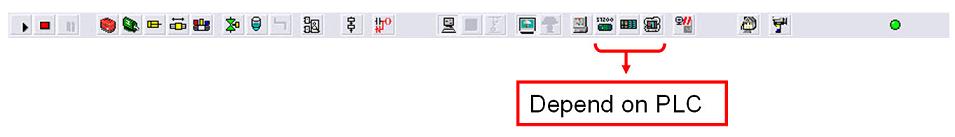

The Toolbar




Les différents raccourcis :



palys.gif   RUN mode  (execution of the command program)



stop.gif  STOP mode (with initialization of the variables during restart )



pause.gif  PAUSE mode (the program is not executed any more)



boiteoutils.gif  Toolbox



moteur.gif  Motor



verin.gif  Jacks



lintra.gif  Linear Positioner



convoyeur.gif  Conveyor belt



vanne.gif  Valve



cuve.gif  Placing a tank



trace.gif  Piping drawing



bloclogique.gif  Programming with the logical diagram



grafcet.gif  Drawing and programming with Grafcet (SFC)



laddeer.gif  Programming with "Ladder logic"



pc.gif  With The PC driving



api.gif  With the automaton driving



operative.gif  The virtual operative part



reelle.gif  The real operative part and supervision, only available on Siemens and Schneider Electric TSX Micro / Premium versions.



inconu3.gif  Driving with VB, Delphi, Vb.Net, C#





Buttons representing the PLC depend's of the version of ProcesSim :





s7200.gif  With the S7-200  driving



s7300.gif  With the S7-300 driving



simulateursiemens.gif  With the Siemens simulator driving (PLCSim)







logo_TSX_schneider.jpg   With the TSX Micro / Premium driving





bplogo_mod340.jpg   With the Modicon M340 or the Unity PLCSim simulator driving





bp_PHCO.jpg   With the Phoenix Contact (ex : ILC 150 Eth, ILC 370 ETH, ...) driving



conectdeconect.gif  Connect / Disconnect



niveau.gif  Return to the choice of the training level



inconnu.gif Refresh the dynamic displays


   Inform of the detection of the objects shifted with the mouse
